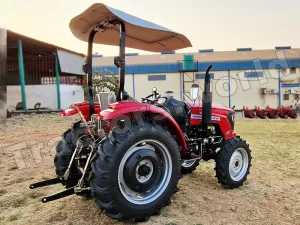

Massive MT-504 Tractor

MT-504 4WD 50HP Tractor Specifications

Wheel Drive: 4X4
Dimension (L*W*H) mm: 3350*1500*1860
Weight(KG): 1400
Front Wheel Tread(mm): 970 1200 1300
Rear Wheel Tread(mm): 1000-1300
Wheel Base(mm): 1600
Minimum Land Clearance(mm): 330
Gear Shifts: 8F + 8R
Transmission Box: (4+4)*2
Tyre Size: 8.3-20 / 12.8-28
Rated Revolution(r/min): 2200 / 2400
Clutch: Dry Friction Single Stage Clutch
Start Mode: Electric
PTO: 6 Spline 540/720

Single Clutch, Hydraulic steering (4wd), Front and Rear Ballast Weight
Combination Meter, Multi-Way Valves
